型号Model	M-H-10L-DCSS-H
密炼腔容积 Mixing Cylinder Cubage( L)	10L
挤出螺杆直径(mm) Diameter of Extrusion Screws( φ)	Φ50
混炼电机功率 Mixing Motor Power ( KW)	11KW
混炼变频调速功率 Mixing Inverter Control Power ( KW)	11KW
挤出电机功率 Extrusion Motor Power ( KW)	3KW
挤出变频调速功率 Extrusion Inverter Control Power ( KW)	3KW
切粒电机功率 Dicing Motor Power ( KW)	0.75KW
切粒变频调速功率 Dicing Inverter Control Power ( KW)	0.75KW
加热功率 Heating Power ( KW)	9KW
产能 Production Capacity kg/min	1.5
温控区数 Temperature Control Interval No.	四区
电器控制 Electric Control	智能温控表 Intelligent Temperature-controlled Table + PLC编程 + 触摸屏控制 Touch Screen Control
最大切粒转速 Max Rotating Speed of Dicing	180r/min
出料小孔径 Small bore Discharging	Φ3.5
切刀吹气冷却 Slicer Cooling	电磁气阀自动控制 Automatically Control by Solenoid Valve
全机重量 Total Weight	约1.8吨 about 1.8 Ton
安装尺寸（米） Size of Installation( M) (长X宽X高)( L x W x H)	2.3×1.3 ×2.5

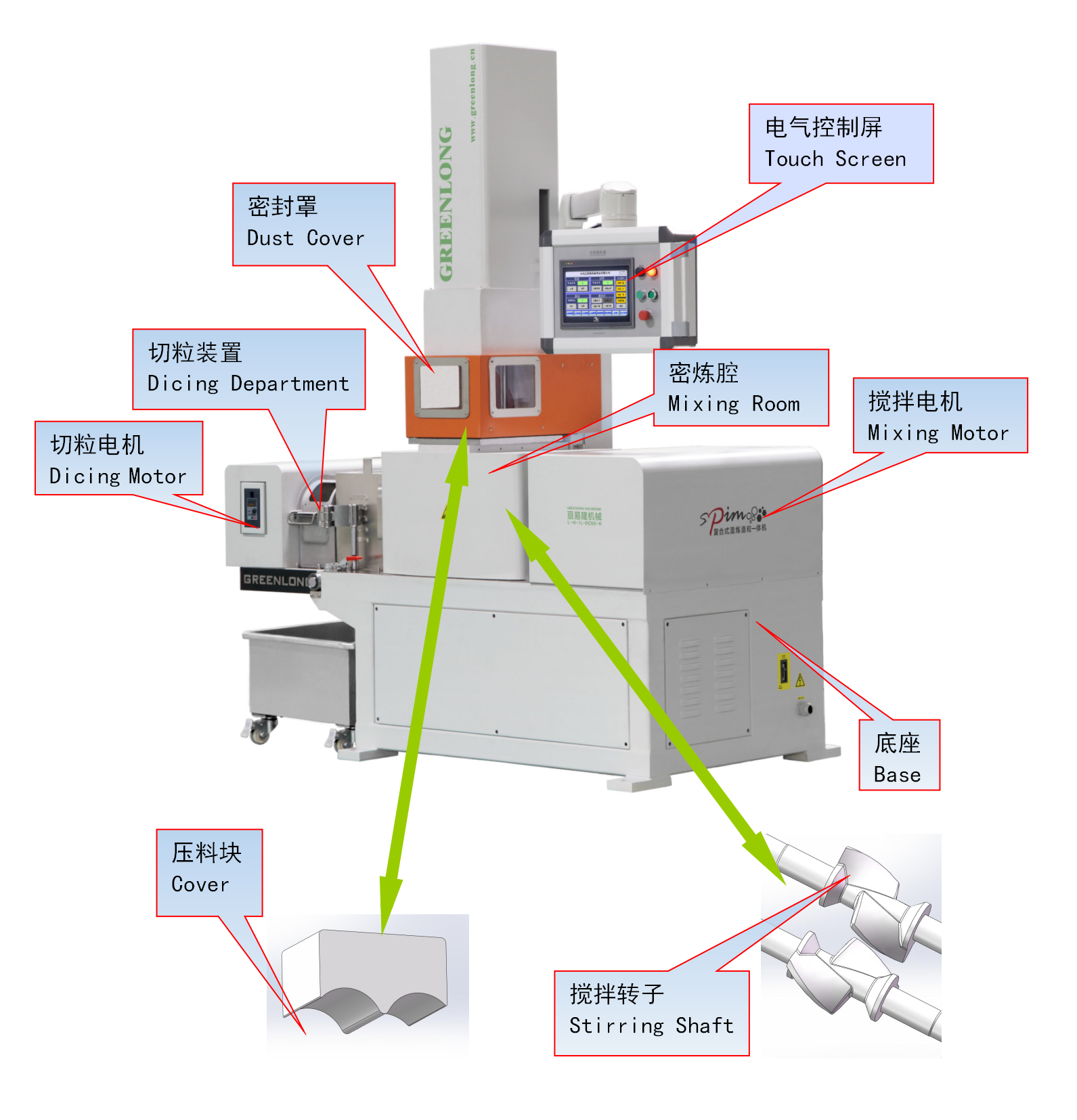

主要零配件明细

Main Part List

本机特点：Special good points

◆ 混炼造粒完美组合，中间无需搬料

This machine integrates mixing and granulation into the whole, and no need to transfer the resin.

◆ 粒料长短可控、光滑度可控

we can adjust the resin's length and Smoothness.

◆ 智能温控，自动化程度高

Intelligent Temperature-controlled, High degree of automation

◆ 工作效率更高，性能更稳定

Higher efficiency and more stable performance

◆ 手动、自动可自由转换

Manual, automatic, freely convertible

◆ 伺服控制，易清理

Servo control, easy to clean

◆ 带粉尘回收和废气排放装置

Dust recovery and exhaust gas emission device

◆ 螺杆和料筒耐磨和抗腐蚀

The screw and barrel are wear resistant and resistant to corrosion

◆ 大推力螺杆设计，输送速度快

Large thrust screw design, fast delivery speed

◆ 体积小，占地面积少

Small size, small footprint

◆ 功耗小，耗电少

Low power consumption and less power consumption
